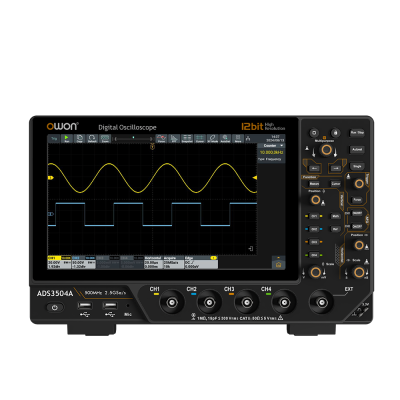

12 bits Multifunction Digital Oscilloscope

SKU : ADS4000A

ขายแล้ว 0 ชิ้น

คำอธิบายสินค้าแบบย่อ

The 12 bits digital oscilloscope. up to 500 MHz bandwidth, 2.5 GS/s real-time sampling rate. 10.1-inch touchscreen with multi-touch

แบรนด์: OWON

Product description

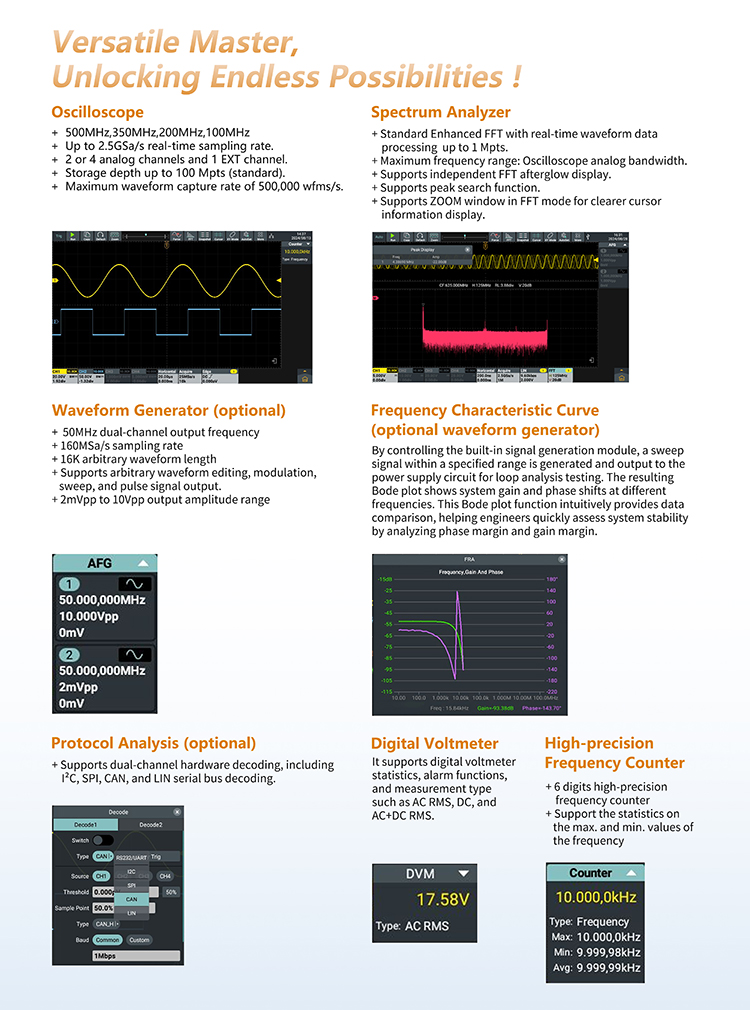

Integrates oscilloscope, dual-channel 50MHzAFG (optional),Frequency counter, voltmeter,
FFT spectrum analyzer and protocol analyzer.
100MHz-500MHz bandwidth, 2.5GS/s real-time sampling rate.
100M Record Length, up to 500,000wfms/s waveform refresh rate.

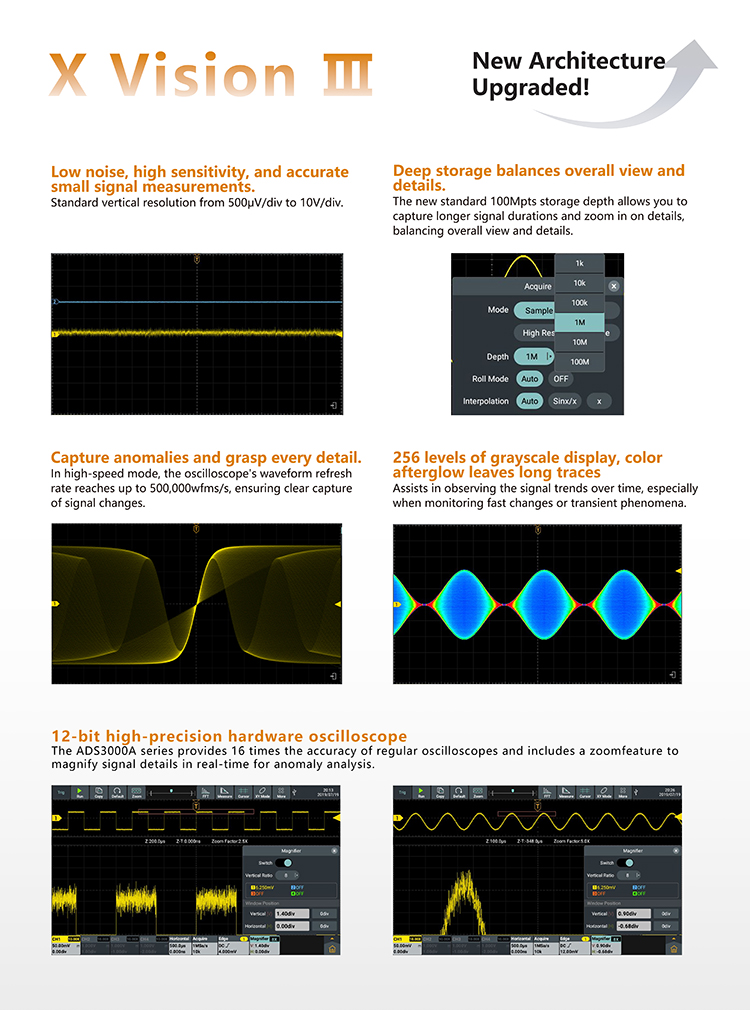

Vertical Resolution is 12-bit, time base range is 500ps/div-1000s/div

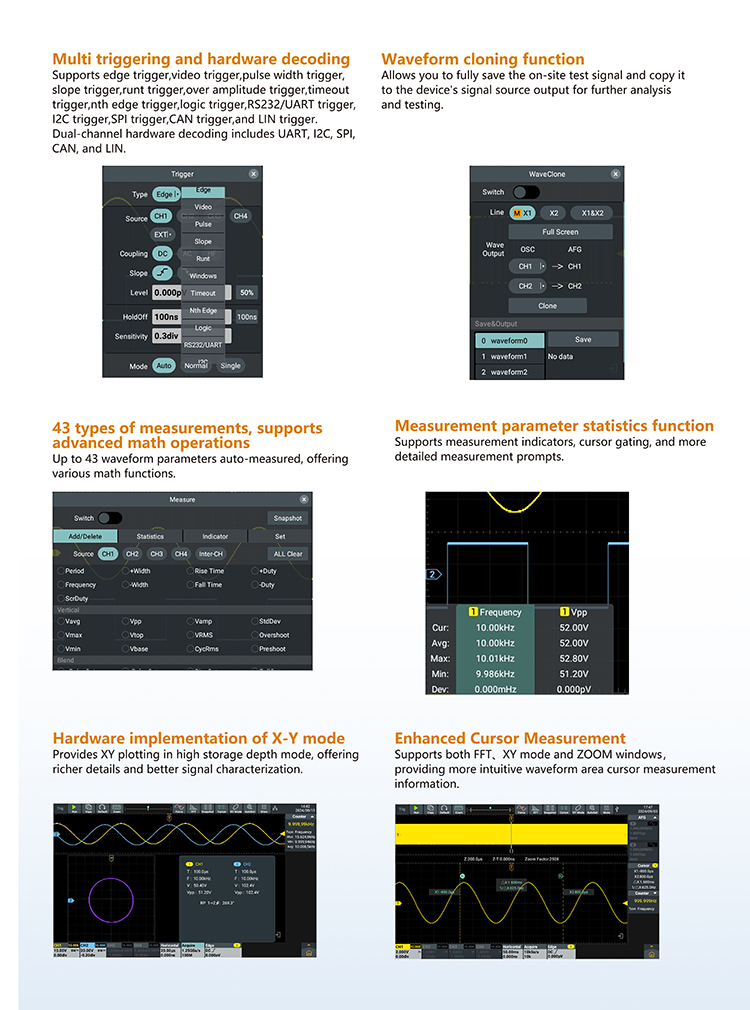

Multi triggering: edge, video, pulse width, slope, under-amplitude,over-amplitude, timeout, Nth edge, logic and RS232/UART,l2C, SPI,CAN, LIN; 2-channel hardware decoding: UART, I2C, SPI, CAN, LIN.
Comprehensive Features Waveform Cloning and Bode Plot Functions. (AFG models)
Up to 43 auto measurements, math operations, built-in enhanced FFT,and peak search.
Enhanced FFT and ZOOM features provide clearer waveform display and cursor information
Built-in microphone and speaker, with support for external devices like mouse and keyboard,greatly enhancing efficiency.
Enhanced file management for easier viewing, editing, and exporting.
Equipped with USB device*1, USB Host*3, Trig Out(P/F), LAN, supporting Web Control and SCPl.
Optional wireless module (Wi-Fi/Bluetooth) supports FTP, network printers, mobile hots pots.
10.1-inch touchscreen with multi-touch support for an enhanced interactive experience
