High Definition Oscilloscope 12 bits

SKU : DLM3054HD

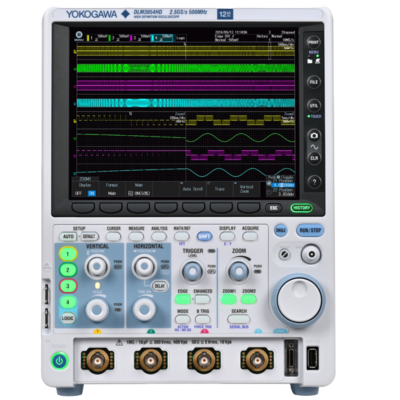

DLM3000HD Series High-Definition Oscilloscope

Product description
  • 4 analog channels, 8-bit logic
  • Bandwidth: 350 or 500 MHz
  • Sample Rate: up to 2.5 GS/s
  • Vertical resolution: 12-bit
  • High resolution mode: up to 16-bit
  • Measurement memory: up to 1 GigaPoints
  • History waveforms: up to 200,000 triggers
  • Simultaneous Multi-Channel Measurements: Up to 16-bit logic + 6 channelsUp to 8 channels with two connected DLM3000HDs via DLMsync
  • IEEE1588 Synchronous Support
  • Highly-Responsive, Intuitive 8.4in Touchscreenwith Traditional Oscilloscope Control Panel
  • Superior Noise Immunity
  • Logic and Serial Bus Analysis
  • Additional Math Channels
  • Extensive Voltage Ranges
  • Compact, Light, Portable

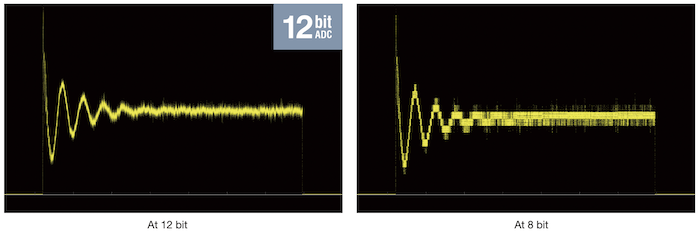

12- to 16-Bit High Resolution
Compared to traditional 8-bit oscilloscopes, the DLM3000HD measures 12-bit vertical resolution all the time. With its high-definition, resolution improves up to 16-bits, providing 16x more detail than existing high-definition oscilloscopes. Its high-resolution mode enables detailed measurement of events such as ringing and overshoot with impressive accuracy.

Multi-Channel Measurement Up to Eight Channels
A single DLM3000HD measures up to four channels simultaneously, while connecting two instruments extends synchronous measurement up to eight channels to enable evaluations via a single test.

Wide Bandwidth Measurement
Momentary phenomena such as overshoot at the rise of a high-speed inverter cannot be verified with low bandwidth oscilloscopes. The DLM3000HD combines a wide bandwidth of up to 500 MHz with a sample rate up to 2.5 GS/s.

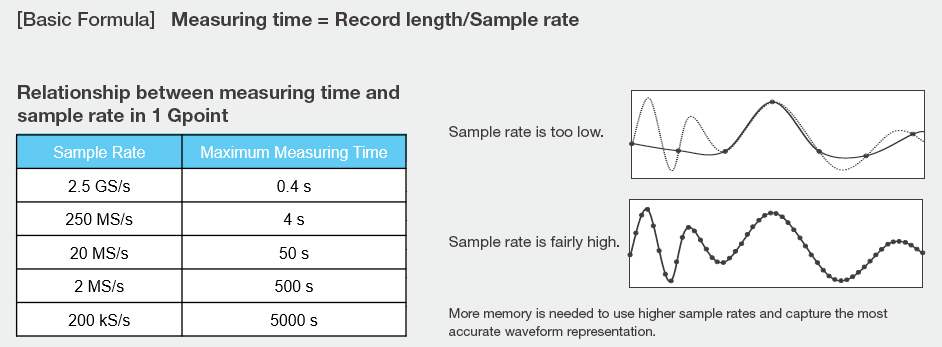

Up to 2.5 GS/s (Four Channels at Once), Up to 1 G Points Memory
The DLM3000HD has a memory that can capture up to 1 G points (odd channels only) in a single waveform and up to 125 M points in a repetitive waveform acquisition to enable long time measurement without reducing the sample rate.

Intuitive and Highly-Responsive Touchscreen
The 8.4in intuitive and highly-responsive touchscreen is useful for observing analog signals in detail and displaying information for debugging like parameters, zoom, XY display, and FFT analysis results.

Quick Startup
The DLM3000HD starts up from OFF to waveform display in twelve seconds for a quicker start on projects.
