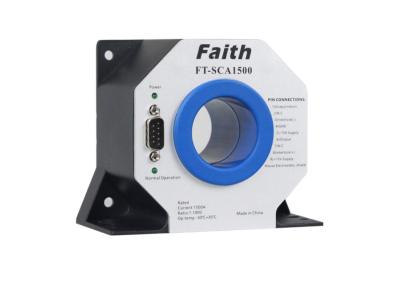

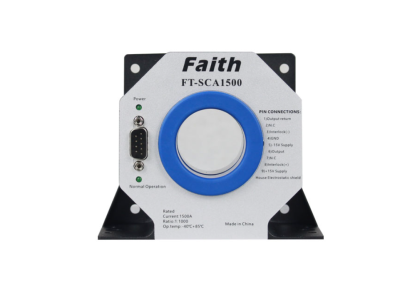

High precision current sensor

• Adopt multi-point zero flux technology, with high precision, small zero offset and high linearity;
• Current range: ±100A/±200A/±300A/±600A/±1000A/±1500A/±2000A/±3000A/±5000A；
• High precision, current precision 10ppm;
• With temperature compensation technology, the temperature stability is 0.2ppm/K;
• AC/DC universal, which can measure AC, DC and pulse current;
• Primary and secondary side isolation measurement;
• No warm-up time;
• Wide band measurement, with the maximum measurement bandwidth of 500kHz;
• Low response time, minimum dynamic response time 1us

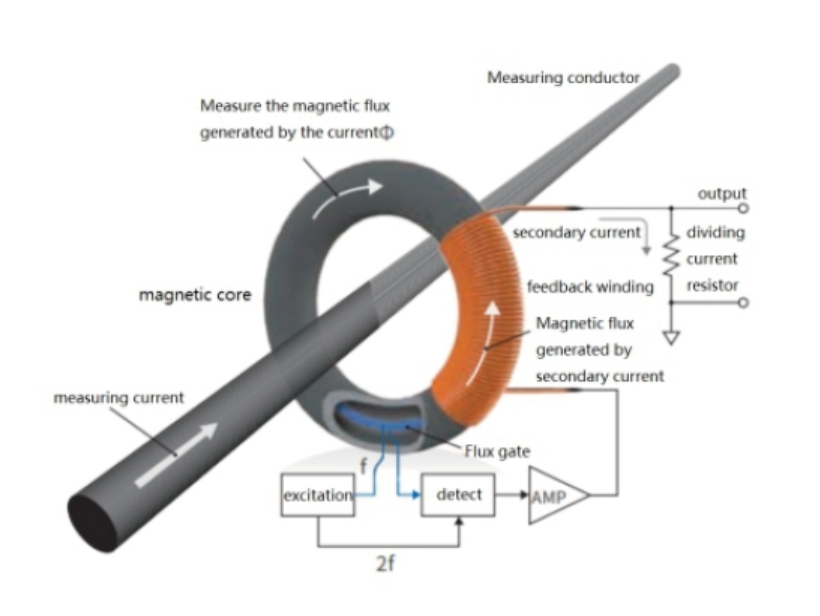

Multipoint zero magnetic flux technology

The magnetic core reaches the magnetic balance state by excitation. When the measuring current flows through the wire, breaking the magnetic balance, the flux gate will generate the excitation current, and the signal will drive the compensation coil after amplification, so that the magnetic flux in the magnetic core and the magnetic flux generated by the measuring current will cancel each other and remain in the "zero" state, that is, the so-called "zero flux" state.
