High-Definition Oscilloscope 12 bits
SKU : DLM5000HD

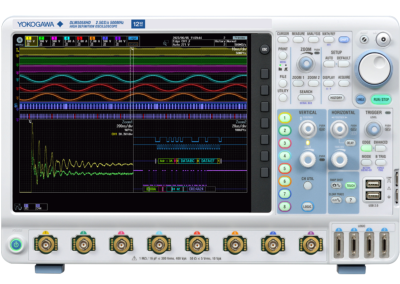

The DLM5000HD Series High-Definition Oscilloscope
Product description
- 4 or 8 analog channels, 16-bit logic + optional additional 16-bit logic
- Bandwidth: 350 or 500 MHz
- Sample Rate: up to 2.5 GS/s
- Vertical resolution: 12 bit
- High resolution mode: up to 16 bit
- Measurement memory: up to 1 GigaPoints
- History waveforms: up to 200,000 triggers
- Simultaneous Multi-Channel Measurements: Up to 32 bit logic + 8 channelsUp to 16 channels with two connected DLM5000HDs via DLMsync
- IEEE1588 Synchronous Support
- Highly-Responsive, Intuitive 12.1in Touchscreenwith Traditional Oscilloscope Control Panel
- Superior Noise Immunity
- Logic and Serial Bus Analysis
- Additional Math Channels
- Extensive Voltage Ranges
- Compact, Light, Portable
12 to 16-Bit High Resolution
Compared to traditional 8-bit oscilloscopes, the DLM5000HD measures 12-bit vertical resolution all the time. With its high definition, resolution improves up to 16-bits, providing 16x more detail than existing high-definition oscilloscopes. Its high-resolution mode enables detailed measurement of events such as ringing and overshoot with impressive accuracy.
Compared to traditional 8-bit oscilloscopes, the DLM5000HD measures 12-bit vertical resolution all the time. With its high definition, resolution improves up to 16-bits, providing 16x more detail than existing high-definition oscilloscopes. Its high-resolution mode enables detailed measurement of events such as ringing and overshoot with impressive accuracy.

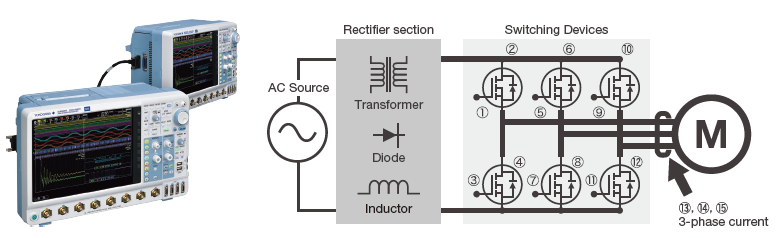

Multi-Channel Measurement Up to 16 Channels
A single DLM5000HD measures up to eight channels simultaneously, while connecting two instruments extends synchronous measurement up to 16 channels to enable evaluations via a single test.
A single DLM5000HD measures up to eight channels simultaneously, while connecting two instruments extends synchronous measurement up to 16 channels to enable evaluations via a single test.
Wide Bandwidth Measurement
Momentary phenomena such as overshoot at the rise of a high-speed inverter cannot be verified with low bandwidth oscilloscopes. The DLM5000HD combines a wide bandwidth of up to 500 MHz with a sample rate up to 2.5 GS/s.

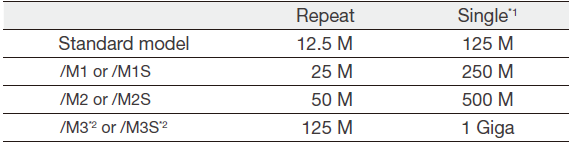

Up to 2.5 GS/s, Up to 1 G Points Memory
The DLM5000HD has a memory capacity up to 500 M points in single mode and 125 M points in repeat mode for waveform capture that allows you to observe waveforms with very few omissions when all channels are used.
Momentary phenomena such as overshoot at the rise of a high-speed inverter cannot be verified with low bandwidth oscilloscopes. The DLM5000HD combines a wide bandwidth of up to 500 MHz with a sample rate up to 2.5 GS/s.
Up to 2.5 GS/s, Up to 1 G Points Memory
The DLM5000HD has a memory capacity up to 500 M points in single mode and 125 M points in repeat mode for waveform capture that allows you to observe waveforms with very few omissions when all channels are used.
Large Selection of Triggers
The DLM5000HDs extensive triggers can trigger on feature points to extract waveforms of interest and store them in the history memory. Display a list of history waveforms to see intervals between triggers or line up several waveforms to identify trends around feature points to determine how often or under what conditions a characteristic waveform occurs.
The DLM5000HDs extensive triggers can trigger on feature points to extract waveforms of interest and store them in the history memory. Display a list of history waveforms to see intervals between triggers or line up several waveforms to identify trends around feature points to determine how often or under what conditions a characteristic waveform occurs.
12.1in Intuitive, Highly-Responsive Touchscreen
The large 12.1in intuitive and highly-responsive touchscreen is useful for observing analog signals in detail and displaying information for debugging like parameters, zoom, XY display, and FFT analysis results.

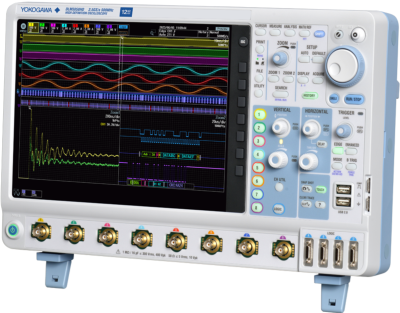

Compact, Light Weight, and Portable
Despite boasting a large screen with multichannel inputs, the DLM5000HD has a portable, thin, and lightweight design.
Quick Startup
The DLM5000HD starts up from OFF to waveform display in twelve seconds for a quicker start on projects.
Link with a PC
It is often more effective and efficient to perform analysis using a PC because of its high CPU processing power. This can be accomplished with the DLM5000HD through integration with the IS8000 Integrated Test and Measurement Software Platform for multiple waveform and power measurement results and powerful analysis capabilities.
The large 12.1in intuitive and highly-responsive touchscreen is useful for observing analog signals in detail and displaying information for debugging like parameters, zoom, XY display, and FFT analysis results.
Compact, Light Weight, and Portable
Despite boasting a large screen with multichannel inputs, the DLM5000HD has a portable, thin, and lightweight design.
Quick Startup
The DLM5000HD starts up from OFF to waveform display in twelve seconds for a quicker start on projects.
Link with a PC
It is often more effective and efficient to perform analysis using a PC because of its high CPU processing power. This can be accomplished with the DLM5000HD through integration with the IS8000 Integrated Test and Measurement Software Platform for multiple waveform and power measurement results and powerful analysis capabilities.
