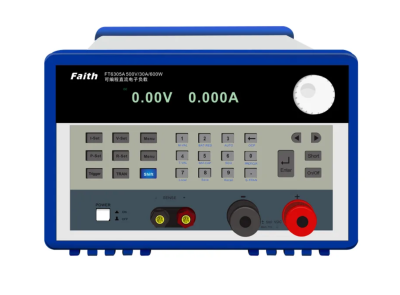

Small and medium power electronic loads

• Voltage level: 120V, 500V;
• Scope of power: 150 w / 300 w / 600 w / 900 w / 1350 w / 1800 w.
• On-load current range up to 240A, safe, stable, reliable and durable;
• Dynamic test frequency up to 20kHz, slope adjustable (for FT6309A-FT6319A);
• Constant voltage, constant current, constant resistance and constant power four test modes;
• Quick call, one-key call test function;
• Sequence test, can simulate the actual load complex changes;
• Intelligent automatic test function, automatic completion of quality judgment;
• Battery internal resistance and battery capacity test;
• Supports remote sampling to compensate voltage drop;
• OCP test, automatically find the overcurrent protection point;
• Intelligent fan control to reduce noise;
• High definition, high brightness display (VFD);
• Keyboard with knob setting, easy to operate;
• Over-voltage/over-current/over-power/over-temperature/polarity reverse protection functions;
• Rich SCPI commands, convenient for the establishment of intelligent test platform and secondary development;
• Standard RS232 interface, remote control can be achieved by computer.

Steady-state function

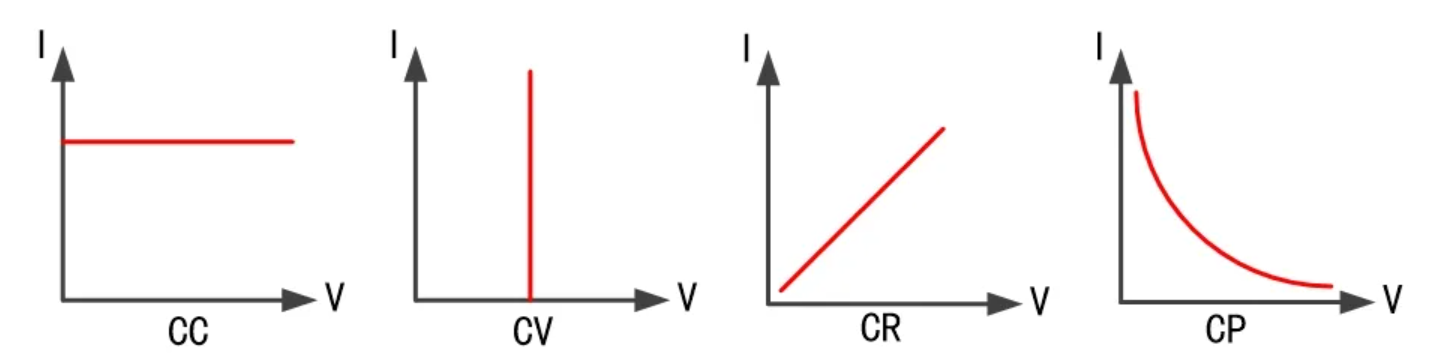

FT6300 series electronic load has four test modes of constant current, constant voltage, constant resistance and constant power to meet a wide range of test requirements. Constant current and constant resistance modes can be used to test whether the output voltage of the voltage source maintains a stable output under different load conditions. For battery chargers and adapters, constant voltage mode can change the output voltage of the charger and adapter to verify that the output current is correct.

Battery test function

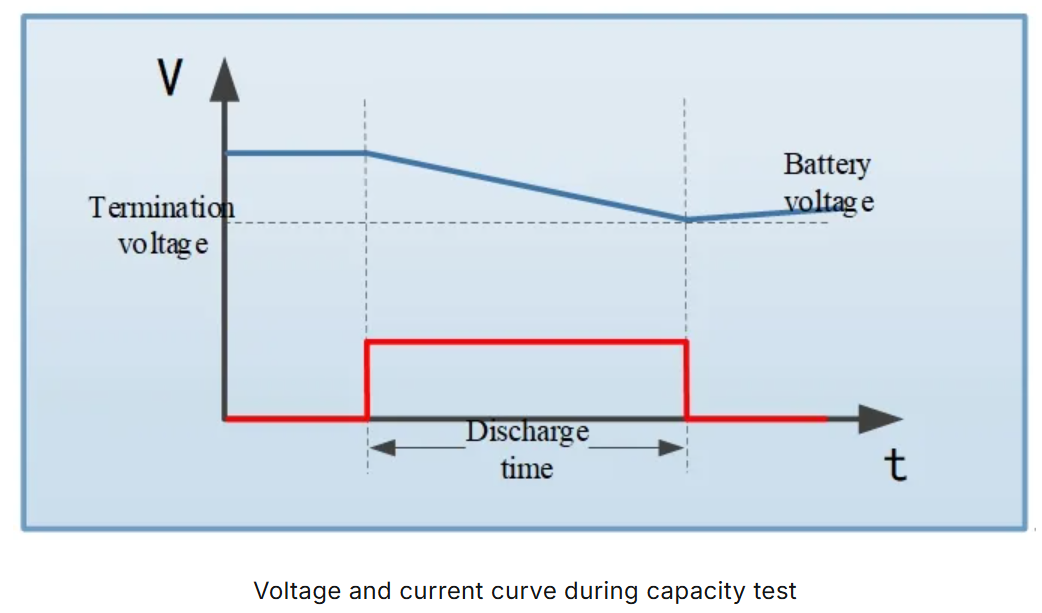

To facilitate battery testing, the FT6300 series offers a battery test function. Battery test includes: battery internal resistance test and battery capacity test. Constant current CC mode is used to test the battery capacity, and only need to set the battery protection voltage and discharge current during the test. Load automatically records voltage, current, time, AH number, below the protection voltage, the load automatically stops testing. With software, more parameters can be tested and analyzed.

Automatic test

The FT6300 series features flexible automated testing. In the automatic test, CC, CV, CR, CP and other test modes are included, which can compare the test parameters with the corresponding upper and lower limits, and finally display the test results in the form of PASS or FAILED. The fully automatic operation mode can greatly improve the test efficiency.
