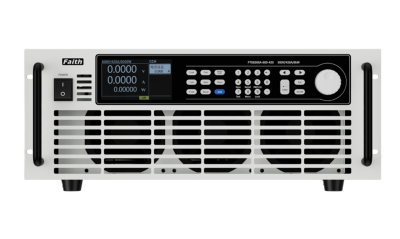

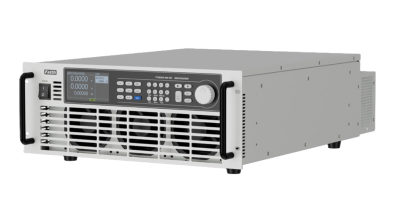

High Power DC electronic load
SKU : FT68200
The FT68200A/AL/E series of high power programmable DC electronic loads is designed for high reliability and high power density, which is twice the power density of traditional loads.
Product description
- Single power: 4kW ~ 60kW, the maximum power can be extended to 600kW through the master/slave parallel;
- Power density 6kW/3U；
- Voltage range: 150V, 600V, 1200V;
- Current range :100A/kW(150V), 70A/kW(600V), 40A/kW(1200V); 20A/kw(1600v)
- High precision, voltage accuracy is (0.025%+0.025%F.S.);
- The current accuracy is (0.05%+0.05%F.S.);
- Multiple working modes: CC, CV, CR, CP, CRD, CPD, CV+CC, CR+CC, CP+CC operation mode;；
- Programming speed 50kHz, sampling speed 500kHz；
- 30kHz dynamic scanning function；
- The remote data transmission rate can reach 1kHz, which can greatly improve the data acquisition ability of the communication interface；
- Instantaneous overpower with load function, instantaneous overload capacity more than twice the rated power；
- OCP, OPP, LED simulation, load effect, battery internal resistance, battery discharge test function；
- Time measurement, (Vpk+/-) measurement function；
- Automatic test function, sine wave band load function, sequence function；MPPT function
- Comprehensive protection functions: over voltage, over current, over temperature, current limit, power limit, input reverse connection, power off memory, etc；
- External analog programming input and current monitoring output with high voltage isolation capability；
- TFT color LCD screen, English and Chinese menu interface；
- Equipped with various communication interfaces: RS232, RS485, LAN, USB, GPIB (optional), CAN (optional),USB-TMC(optional)
- Supports SCPI and ModBus communication protocols;
