Series Multi-channel DC electronic load
SKU : FT66100

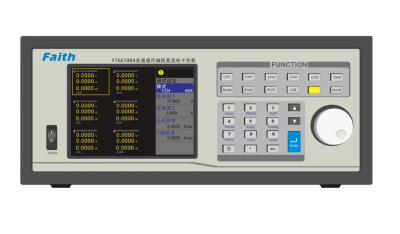

FT66100 multi-channel programmable DC electronic load, modular design, a single frame can install up to 6 electronic load modules.
Product description
- 8-inch color display, can display 6 channels data and set parameters at the same time, self-adaptive screen display;
- Support Chinese/English/Chinese language display;
- 5-bit data, 0.05% accuracy, 20kHz dynamic frequency can be set up and down slope;
- Constant current, constant voltage, constant resistance, constant power and LED five test functions;
- Multiple modules can be set synchronization mode, calmly cope with high current or multi-output channel device test;
- Over voltage/over current/over power/over temperature/polarity reverse and other all-round intelligent protection;
- With adjustable hardware current and power limit value, can effectively provide reliable protection for the tested equipment;
- Support quick call, numeric keys can arbitrarily call the saved Settings, easy to test;
- Support automatic test, load automatically complete the test process, and give the test result;
- Support OCP test, automatically find the overcurrent protection point, record the maximum current and maximum power value and produce the result judgment;
- Two short-circuit states, switching and delay, to ensure the safety of the power supply under test;
- Perfect hardware and software protection, comprehensive internal and external protection;
- Simulate capacitive inductive load, control battery charging and discharging state;
- RS232, GPIB (optional), LAN (optional) communication port, standard SCPI instruction set, easy to build the test system;
- Intelligent fan control saves energy and reduces noise.
