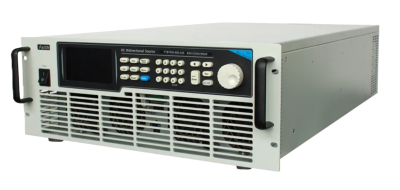

Wide-range high-power bidirectional DC power Source

SKU : FTB7000

FTB7000 series is a wide-range, high-power bidirectional programmable DC power supply

หมวดหมู่ : DC Power Supplies

แบรนด์ :Faith

Product description

Standalone unit range:
Voltage: 0 - 2250V
Current: 0 - ±2880A
Power: 0 - ±300kW;
Master-slave dual-unit expansion power can reach 3MW;
Voltage accuracy: 0.05% + 0.05% F.S.;
Current accuracy: 0.1% + 0.2% F.S.;
Power factor: 0.99, overall efficiency higher than 93%;
Feedback load function, feedback efficiency up to 95%;
Bidirectional energy transfer, seamless switch across quadrants;
Automatic line loss compensation;
Capable of constant voltage, constant current, constant power, and constant resistance functions;
CV/CC priority mode;
Voltage/current slope can be set;
Capable of voltage output ramp-up and ramp-down functions;
Capable of charging and discharging functions;
Capable of sequence and waveform functions, which can realize complex voltage and current waveforms such as automotive electronic test voltage waveforms and user-defined waveforms;
Battery simulator function (optional);
Standard equipped with "Feishu Power Supply Product Demonstration Platform" software with basic solar photovoltaic cell simulation function;
Optional equipped with "Feishatek Solar Photovoltaic Matrix Simulation Software" (optional);
Comprehensive protection functions for overvoltage, overcurrent, overpower, overtemperature, undervoltage, power failure, etc.;
High-voltage isolation digital, analog, monitoring, control interfaces;
Equipped with various communication interfaces: LAN, USB;
Optional RS485, CAN or GPIB;
Communication protocols support SCPI, MODBUS, CAN-OPEN (optional) protocols;
Provide communication programming manual, SDK development package and demonstration upper computer;
5-inch LCD touch screen, Chinese, English, and simplified Chinese menu interface;
Intelligent fan control;
4U/50kW high power density, standard 19-inch rack-mounted design.
