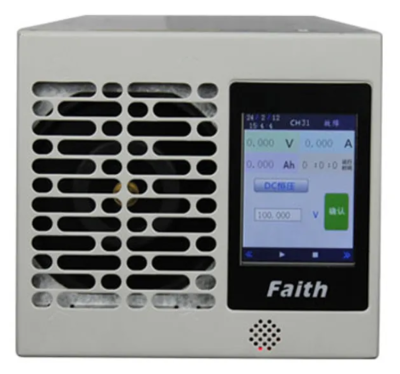

Modular bidirectional DC Power supply

• Ultra-high power density, up to 3U/60kW;
• Intelligent forward and reverse operation, seamless switching between DC power supply and feedback load;
• Integrated off-grid and grid-connected switching function;
• Soft switch design, low loss and high efficiency;
• Power factor > 0.99;
• High dynamic response, full load switching time as low as 10ms;
• With output programmable function, can simulate a variety of power and load characteristic curve;
• Modular design, easy to maintain, support parallel expansion;
• Wide operating temperature range -20 ~ 45;
• The output voltage range is wide, the precision is high, the dynamic response is fast;
• DSP design, realize full digital control;
• Touch display operation control, simple and intuitive.
• Interleaved parallel technology is adopted to reduce ripple current;
• Multi-dimensional intelligent fan regulation technology to reduce power consumption and noise.

• Charging pile test and aging
• Energy storage converter (PCS), microgrid equipment production and development
• Motor system, electronic control system test
• Power battery, energy storage equipment testing

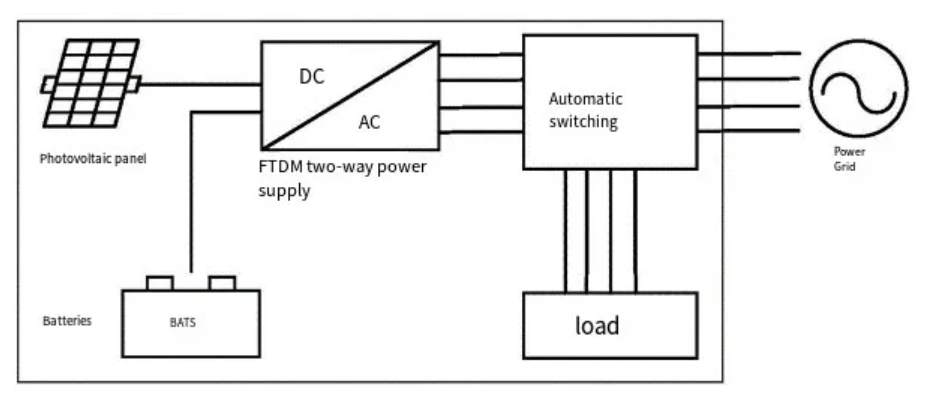

off-grid automatic switching

FTDM series integrates off-grid and grid-connected switching circuit, which can realize the function of off-grid automatic switching.

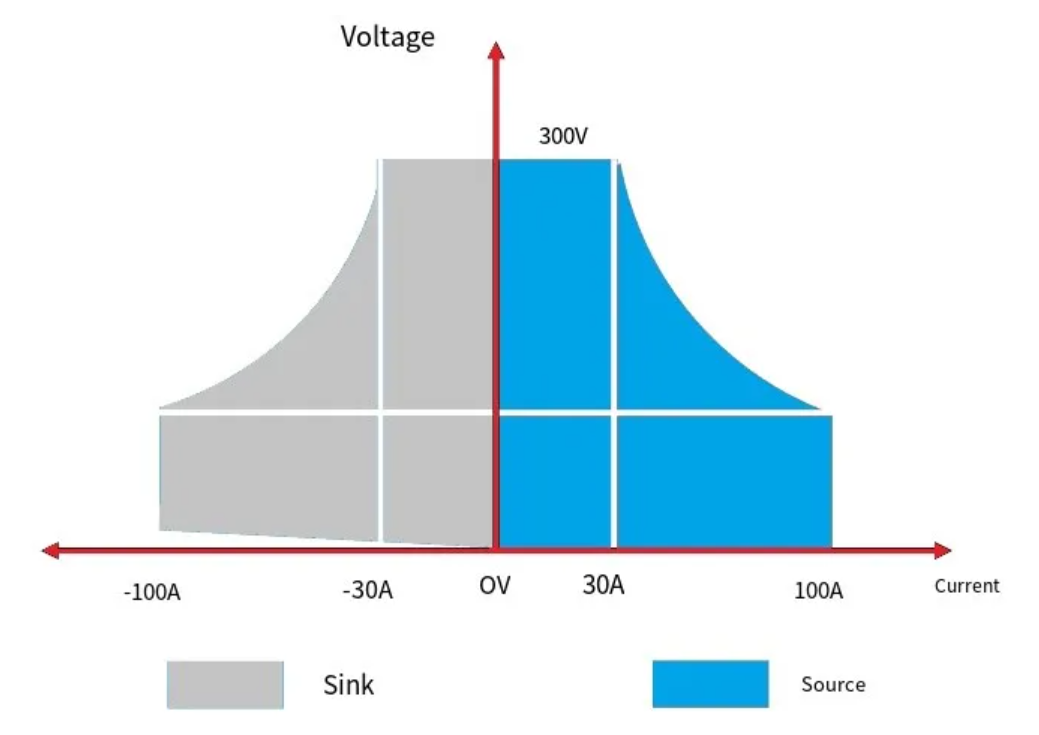

Seamless switching between DC power supply and feedback load

Realizes the source and load current mode conversion, so that the output current and the absorbed current can be quickly and continuously switched seamlessly, effectively avoiding voltage or current overrush, and is widely used in battery, battery packaging, battery protection board and other energy storage equipment testing.

multi-machine parallel function

FTDM series adopts advanced control algorithm to realize multi-machine parallel, and the power level of parallel system can cover 1MW, which greatly expands the application output range of power supply. Parallel function in addition to the automatic load between the power supply, to maintain the output value is consistent, but also to ensure the output slope curve or waveform is consistent. In the parallel state of the host, the power supply screen displays the total voltage, current and power values. Each slave automatically equalizes current and sums automatically.
