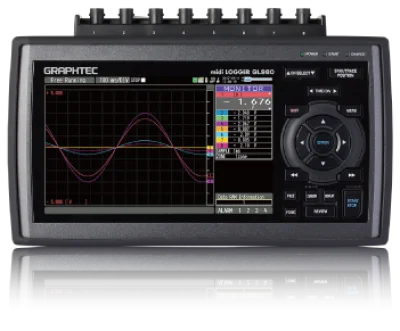

8 Channel Data Logger GL980

SKU : GL980

GL980 is an 8-channel high-voltage isolated data logger (500 V range) with RMS measurement, simultaneous 1 MS/s high-speed sampling, ideal for machine performance and durability testing. Features 4 MW/ch RAM, 8 GB flash, SD/USB storage, and optional DP-581H printer for secure on-site data output.

หมวดหมู่ : Data Logger

แบรนด์ :Graphtec

Product description

Specification

GL980 is equipped with an isolated input mechanism to protect signals from interferences caused by noise from other channels. 16-bit A/D converter adopted to achieve hi-speed and hi-resolution measurement.

Simultaneous Sampling with Isolated Inputs

Simultaneous sampling

GL980 utilizes simultaneous sampling to eliminate slowdown in sampling rate by using multiple A/D converters in simultaneous sampling method.

External sampling

Sampling of the logger is performed in sync with an external device using an external signal input.

Multifunction input

Voltage, temperature, humidity, logic and pulse measurements can all be taken simultaneously in high speed.

Large Easy-to-read 7-inch LCD

Monitor data in multiple methods in addition to digital value display and full waveform display screen.

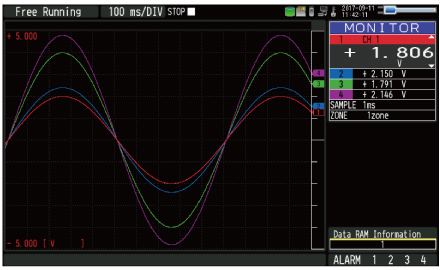

Y-T waveform monitor screen
Digital monitor screen
Past waveform monitor screen
XY graph monitor screen

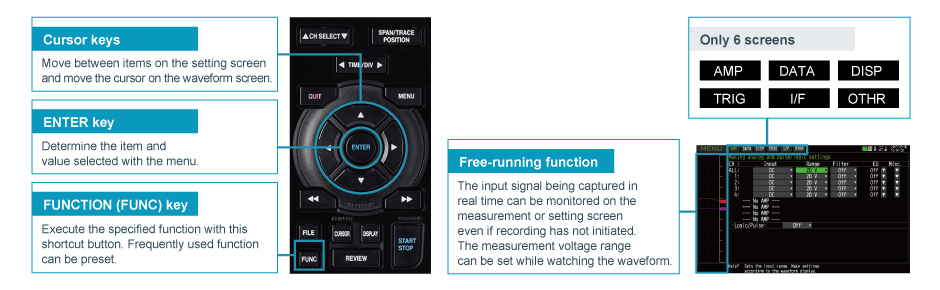

Quick and Easy Set Up Process

Simple operation with cursor and enter keys, and menu-driven operation with six pre-set menu screens: AMP, DATA, DISP, TRIG, I/F (Interface) and OTHER
