4 Channel Data Logger GL2000

SKU : GL2000

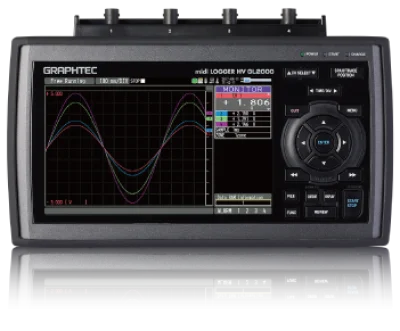

GL2000 is a 4-channel high-voltage isolated data logger (CAT III 600 V) with 1 MS/s sampling, suitable for factory and high-voltage measurements. Supports DP-581H printer for secure on-site data output, with internal 4 MW/ch RAM, 8 GB flash, and external SD/USB storage

หมวดหมู่ : Data Logger

แบรนด์ :Graphtec

Product description

High speed 1 MS/s simultaneous sampling with isolated input

GL2000 is equipped with an isolated input mechanism to protect signals from interferences caused by noise from other channels. 16-bit A/D converter adopted to achieve hi-speed and hi-resolution measurement.

Simultaneous sampling

GL2000 utilizes simultaneous sampling to eliminate slowdown in sampling rate by using multiple A/D converters in simultaneous sampling method.

External sampling

Sampling of the logger is performed in sync with an external device using an external signal input
