Bidirectional Battery Cell simulating Power Supply
SKU : FT8340
āļāļēāļĒāđāļĨāđāļ§ 0 āļāļīāđāļ
āļāļģāļāļāļīāļāļēāļĒāļŠāļīāļāļāđāļēāđāļāļāļĒāđāļ

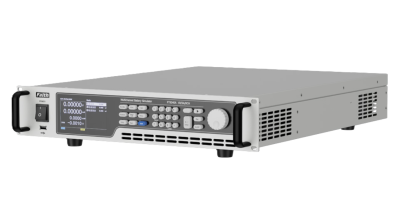

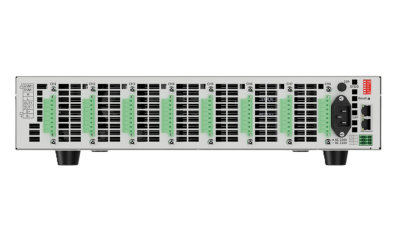

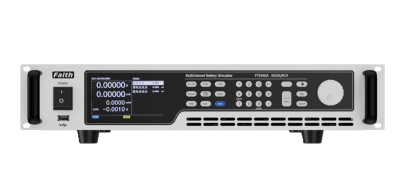

The FT8340 series is a high precision, multi-channel, dual quadrant programmable battery simulator.
āđāļāļĢāļāļāđ: Faith
āļŦāļĄāļ§āļāļŦāļĄāļđāđ:
Battery Testing
Product description
- Voltage range:Âą5V/Âą6V/Âą15V/Âą20V(Positive and negative voltages are only available for A series);
- Current range:Âą1A/Âą2A/Âą3A/Âą5A/Âą10A;
- Two current ranges, uA level measurement, capable of static power consumption testing;
- Equipped with an independent DVM channel for high-precision measurement (only for A series);
- Voltage temperature drift coefficient less than 25ppm/;
- Seamless switching between source and load, powerful battery characteristic simulation function;
- Unique fault simulation function, simulating battery disconnection, short circuit, reverse connection etc(only for A series);
- Equipped with battery simulation function;
- Isolation between channels, capable of using multiple channels in series;
- Professional testing software that supports data reporting and analysis;
- Built in RS485 and dual LAN control interface;
- Standard 19 inch chassis,with a height of 2U,easy for rack installation.
