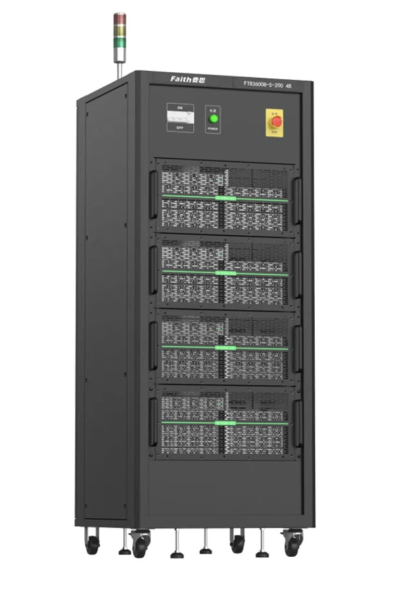

Battery charge and discharge equipment

• Modular design, each module for an independent channel;
• Each channel can detect different types of batteries, and completely independently work in different modes, without affecting each other;
• High measurement accuracy, voltage, current accuracy of 0.03%F.S.;
• With multiple current range, can automatically switch the range;
• With fast current response, response time 3ms;
• The discharge energy can be recovered, the efficiency is up to 80%;
• High-speed data recording, interval time 10ms;
• With multi-channel parallel function, parallel current up to 2400A;
• The channel has complete software and hardware multilevel protection.
• Multi-function recorder and thermostatic/wet box can be integrated;
• Professional testing software to support data reporting and data analysis.

• Battery (cell) production;
• Battery research and testing;
• Battery quality test;
• Working condition simulation test;
• Battery echelon recovery, etc.

Energy Feedback

FT8360 series products have the function of feedback load, which can return the discharge energy of the tested battery to the factory Intranet for direct use, rather than dissipate it as heat. Its energy feedback conversion efficiency is as high as 80%, which can not only greatly reduce the cost of electricity for users, but also avoid the use of air conditioning and other refrigeration systems and reduce noise.

High precision measurement

The FT8360 series has high accuracy with voltage resolution as low as 0.1mV and voltage measurement accuracy of 0.03%F.S. Current measurement accuracy is 0.03%F.S. Higher measurement accuracy provides more accurate and efficient data for testing.

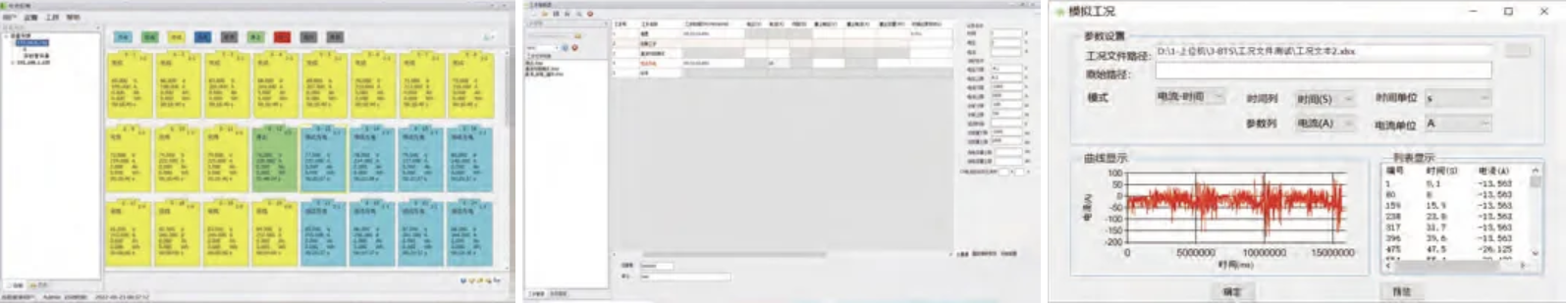

computer graphical operation software

FT8360 series provides a test software for upper computer, which can realize test step editing, centralized control, real-time reading of test data, generating images, exporting reports, printing reports, etc., which is convenient for users to use.
