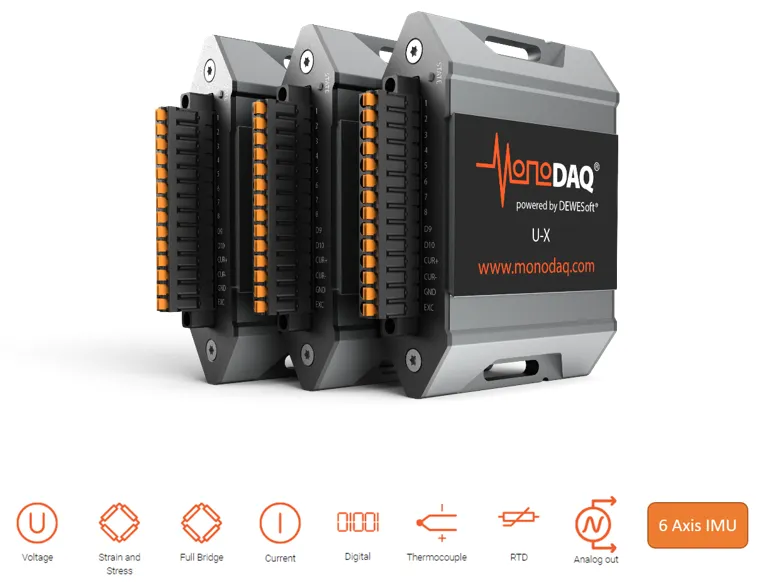

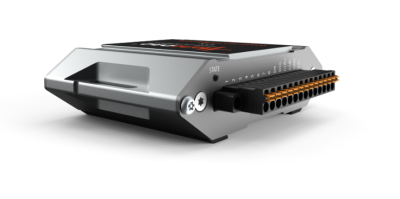

MonoDAQ-U-X

MonoDAQ-U-X is stackable to multiple devices that are synchronized over USB from the same hub. 8 multifunctional pins can be configured as analog or digital inputs or outputs.

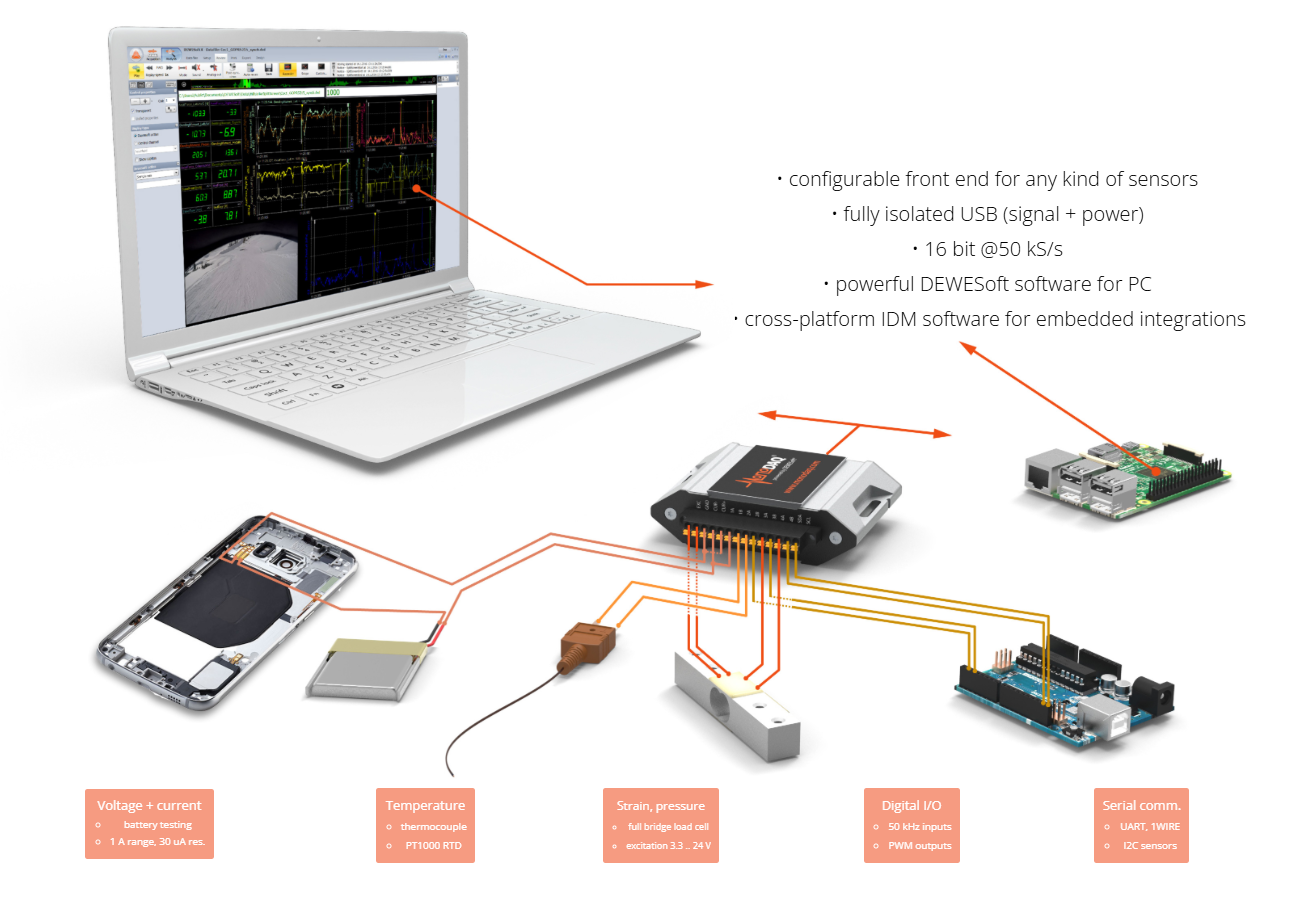

MonoDAQ-U-X general specifications

• Power and signal isolation between USB and front end
• Max. sample rate: 50 kS/s, resolution: 16 bit
• Can connect up to 4 full bridge strain gauges or up to 4 thermocouples
• Max. 4 differential or 8 single ended voltage inputs
• Current input with internal shunt (0.5 ohm, 1k ohm)
• Analog output (0-4V, 12bit)
• Max. 8 digital inputs or outputs
• 1 wire, I2C and UART interface on front connector
• Internal humidity sensor
• Internal IMU (3-axial acceletometer and 3-axial gyroscope)
