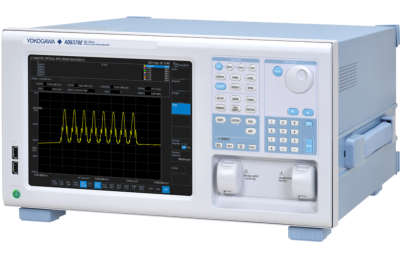

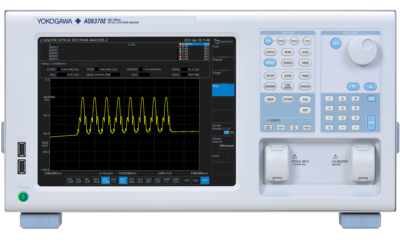

Telecom Optical Spectrum Analyzer
SKU : AQ6370E
āļāļēāļĒāđāļĨāđāļ§ 0 āļāļīāđāļ
āļāļģāļāļāļīāļāļēāļĒāļŠāļīāļāļāđāļēāđāļāļāļĒāđāļ
The AQ6370E OSA has a versatile wavelength range of 600 nm to 1700 nm, ideal for both telecom and general purpose applications.
āđāļāļĢāļāļāđ: Yokogawa
āļŦāļĄāļ§āļāļŦāļĄāļđāđ:
Optical Analyzer
Product description
World-Class Optical Performance
- Wavelength range: 600 to 1700nm
- High wavelength accuracy: Âą0.008 nm typ.
- High wavelength resolution: 0.02nm
- Wide dynamic range: 78dB typ.
- Wide level range: +20 to -90dBm
- Fast measurement: 0.2 sec. (100nm span)
- Applicable to single-mode and multimode fibers
- High wavelength resolution: 0.02nm
- High performance model: Âą0.008 nm typ. (C band)
- Standard model: Âą0.015 nm typ.(S+C+L band)
