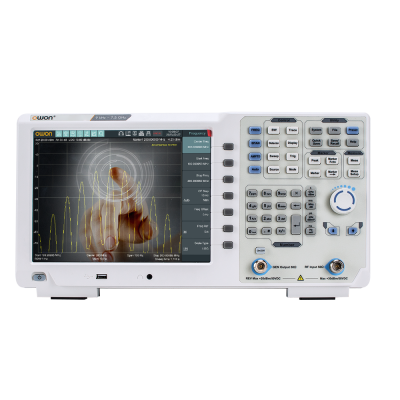

Spectrum Analyzer

SKU : XSA1000P

ขายแล้ว 0 ชิ้น

จำนวน

คำอธิบายสินค้าแบบย่อ

Spectrum Analyzer, Frequency range 9kHz - 7.5GHz

แบรนด์: OWON

Product description

Frequency range 9kHz - 7.5GHz
-163 dBm Displayed Average Noise Level (DANL)
Phase noise -106 dBc/Hz @1GHz and offset at 10 kHz
Total amplitude accuracy <0.7 dB
1 Hz minimum resolution bandwidth (RBW)
Optional EMI Pre-Test function, optional EMC test software

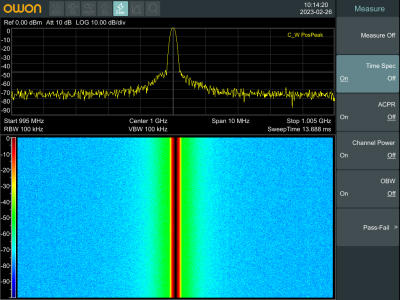

Waterfall plot graphic, modulation signal quality analysis, audio demodulation, ect. multiple general and extended test functions.
tandard Pass/Fail on-site test and alert function
Adopt all-digital intermediate frequency technology
Multiple interfaces: USB Host, USB Device, LAN, earphone interface, HDMI
10.4-inch multi-touch screen
