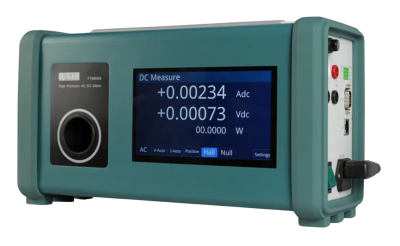

High precision AC and DC measuring instrument

• Measurable single-phase AC and DC voltages, currents, frequencies, and active power;
• Multiple measurement ranges for voltage and current, automatic switching is available, and the measurement can reach 120% of the range limit;
• Voltage measurement range: DCV: -2000V to 2000V, ACV: 0 to 1414V;
• Current measurement range: DCI: -1500A to 1500A, ACI: 0 to 1060A;
• Voltage measurement accuracy: 0.004% + 0.01% F.S.;
• Current measurement accuracy: 0.008% + 0.006% F.S.;
• Portable design, convenient for on-site measurement;
• Standard equipped with RS232, RS485, LAN, CAN communication interfaces, and can directly communicate with PC;
• Supports ModBus and CANOpen communication protocols;
• 7-inch touch screen operation, with Chinese and English menu interfaces;
• Can be externally connected with Hall sensors.

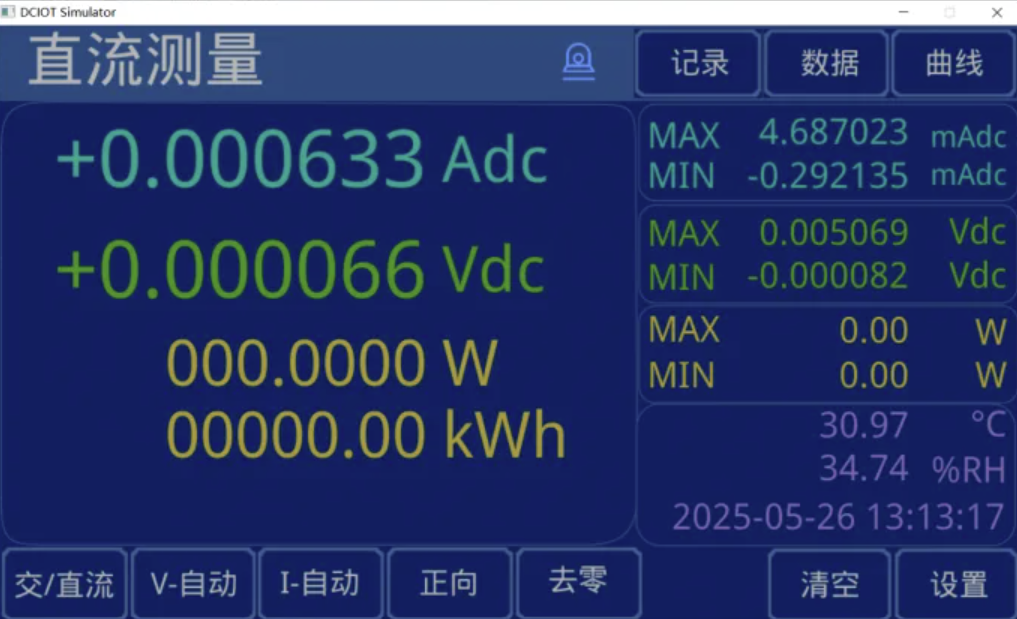

Main interface display

FTM8008 offers comprehensive electrical parameter measurement capabilities, covering voltage, current, power and power consumption. Its core advantage lies in the real-time display with up to 7-digit resolution. The combination of excellent accuracy and refresh rate provides a precise data source for customer R&D verification, product testing and energy consumption assessment.

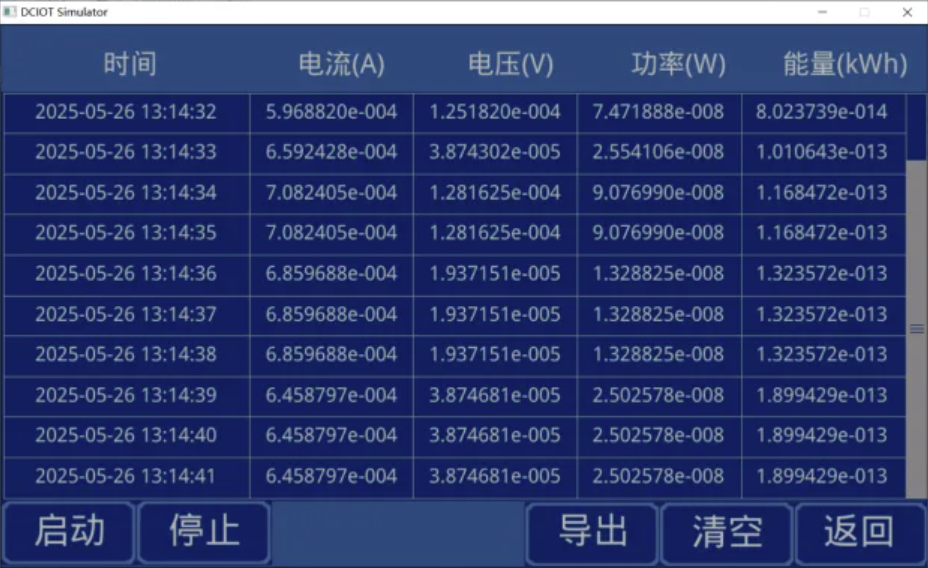

Data recording and export

FTM8008 has data recording capability. Users can precisely control the start and end times of the recording to ensure the capture of the target data segment. The recorded data can be conveniently exported via USB as standardized tabular files (such as CSV), and is perfectly compatible with various data analysis software and office tools.
